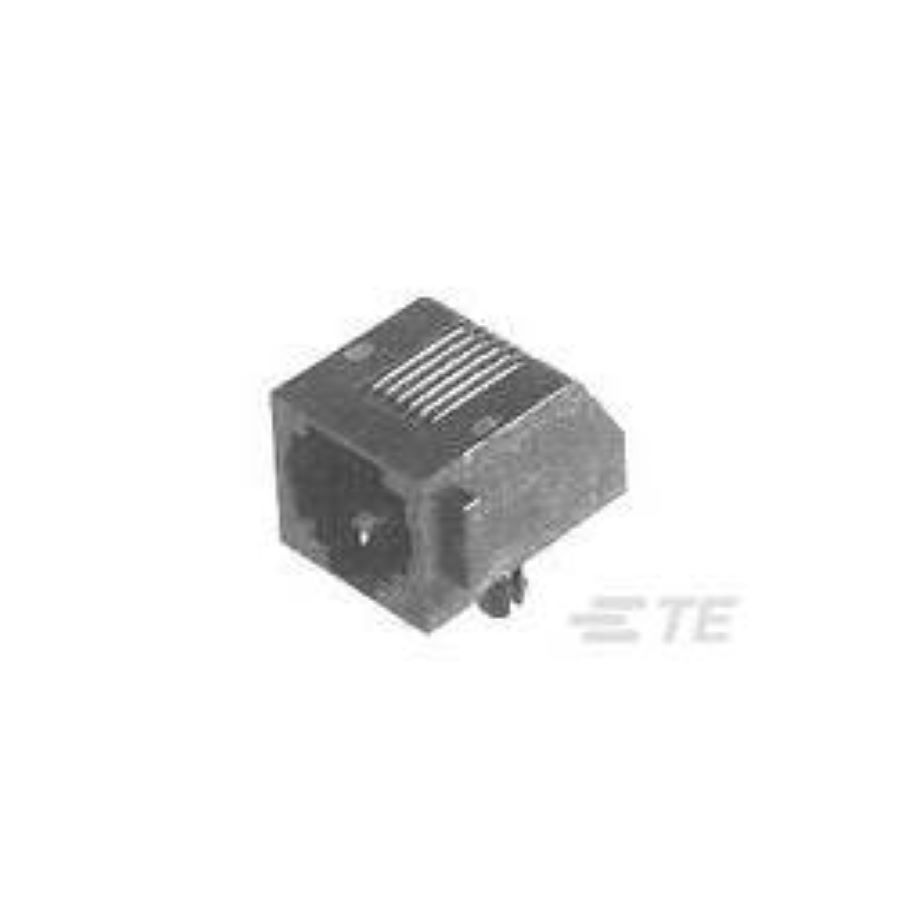

5555165-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5555165-2
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole Female Current Rating:20 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Length | 13.34 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.7 mm |
| Packaging | Tray |
| Voltage Rating | 150 V |
| Depth | 18.17 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.64 mm |
| Number of Terminals | 6 |
| Current Rating | 20 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Element Configuration | Single |
| Direction(Counting Sequence) | Down |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Gold |
| Keyed | No |
| Number of Positions Loaded | 4 |
| PCB Thickness | 1.57 mm |
| Tail Length | 3.8 mm |
| Plating Thickness | 1.27 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Package Quantity | 704 |
| Mounting Angle | 90 °(Right) |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ11, RJ14 |
| Number of Positions/Contacts | 6P4C |
Stock: 2476
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.40694 | $4.06940 |
